Nikon 28mm f/1.8 G
Nikon 28mm f/1.8 AF-S (67mm filters, 11.5 oz./325g, 0.8'/0.25m close focus, about $700). enlarge. This free website's biggest source of support is when you use these links, especially this link directly to this lens at Adorama and at Amazon when you get anything, regardless of the country in which you live. Thank you! Ken.
It's all plastic and made in China, with a metal mount. The first thing that hits you about it is how light it is, and that's always how it feels: small and light.
The reasons to get this 28mm lens are if you are traveling light, and prefer a small, fast, fixed wide lens to a zoom like the 16-35mm VR.
Optically, this 28mm f/1.8 is excellent, but not that much better than any of Nikon's other 28mm lenses or zooms. The reason for this 28mm is speed for shooting action in low-light (or for shooting slow 35mm film), or if you need instant manual-focus override simply by grabbing its big focus ring. Otherwise, no big deal.
As an FX lens, this review is written for use on FX. On DX, no big deal; just know that when I mention the "corners," I'm talking about a part of this lens' image that isn't seen on DX. More at Crop Factor.
The incompatibilities for older or cheaper 35mm cameras are that:
1.) It won't autofocus with the cheapest new AF 35mm cameras like the N55, but if you focus manually, everything else works great. Even if you lose autofocus, these cameras have in-finder focus confirmation dots to help you.
2.) Late 1980s ~ early 1990s AF cameras like the N90s, N70 and F4 will focus just fine, but you'll lose VR. You'll have Program and Shutter-priority modes, but lose Manual and Aperture-priority since you have no way to set the aperture on the camera or on the lens.
3.) You're really pushing it with the oldest AF cameras like the N2020, N6006 and N8008. You'll have no AF, confused exposure modes, and no VR. Manual focus is fine, along with electronic focus indications.
4.) Since it has no aperture ring, it's just about useless with manual focus film cameras. It will shoot every shot at its minimum aperture.
See Nikon Lens Compatibility for details with your camera. Read down the "AF-S, AF-I," "G" and "VR" columns for this lens. You'll get the least of all the features displayed in all columns, since "G" (gelding) is a deliberate handicap which removes features.
Nikon 28mm f/1.8 G AF-S. enlarge.
Bottom, 28 1.8 G.
Nikon calls this the Nikon AF-S NIKKOR 28mm f/1.8G.
NIKKOR: Nikon's brand name for all their lenses.
AF-S and SWM: Silent Wave Autofocus Motor.
Nano Crystal Coat (N): Magic anti-reflection coating that has a variable index of refraction that's far more effective than multicoating. It's probably only on one surface, and is used mostly for marketing purposes.
RF: Rear focusing; nothing moves externally as focused except the rear element.
Aspherical: Specially curved glass to give even sharper pictures.
∅67: 67mm filter thread.
↓10↑: 10-year life expectancy before its lead-free (RoHS) solder grows tin "whiskers" that ensure its circuitry becomes unrepairable. In other words, a 10-year expected life before being thrown away.
MADE IN CHINA: Offshored to be made as cheaply as possible. Your purchase helps encourage other companies to move their production to China, whose government may eventually choose to nationalize (take over) all of it in the future, leaving the rest of the world enslaved to China. Communist governments are evil, but not stupid, subsidizing labor costs today to help gain control of the world's means of production tomorrow. You've been warned.
Does not include ED, Extra-low Dispersion Glass. The gold band is deceptive, and in this case, used only to support the elevated price. It does not mean ED glass.
11 elements in 9 groups.
Two aspheric elements.
It's multicoated ("Super Integrated Coating," and one element uses Nano Crystal Coating (N) for marketing purposes.
It uses no ED glass, so the external gold band is a lie.

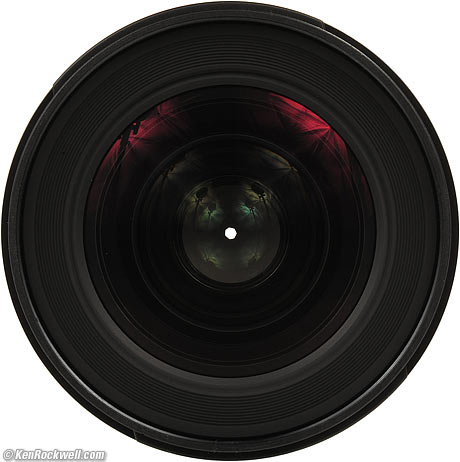

Nikon 28mm f/1.8 G AF-S at f/16. enlarge.
7 rounded blades.
Stops down to f/16.
Relatively round to f/4, and relatively heptagonal from f/4.
Focal Length top
Angle of View top
53° on small-format DX.
Close Focus top
0.8 feet (0.25 meters) from the image plane.
Maximum Reproduction Ratio top
Hard Infinity Focus Stop? top
You have to let the AF system focus at infinity.
Focus Scale top
Depth-of-Field Scale top
No, unless you consider the two useless tits for f/16 as a depth-of-field scale. I don't.
Infra-Red Focus Index top
Aperture Ring top
Filter Thread top
67 mm, plastic.
Does not move.
Nikon specifies 2.9 " (73 mm) diameter by 3.2 " (80.5 mm) extension from flange.
11.455 oz. (324.7 g), actual measured.
Nikon specifies 11.6 oz. (330 g).
Plastic bayonet HB-64 hood, included.
Capped Nikon 28mm f/1.8 G AF-S.
Excellent LC-67 front cap and new-style dust-covering LF-4 rear cap.
Pouch CL-0915 included, but a used sock works better.
LC-67 front cap.
LF-4 rear cap.
HB-64 plastic bayonet hood.
Instructions and warranty.
Lens: Made in People's Republic of China.
LR-4 rear cap: Made in Thailand.
LC-58 front cap: Made in Thailand.
5 years, USA.
Gold-colored micro-corrugated box with translucent plastic lens holder.
Box, Nikon 28mm f/1.8 AF-S.
Inner packaging, Nikon 28mm f/1.8 AF-S.
19 April 2012.
Available since top
Nikon Product Number top
Price, USA top
$700, early 2012.
The Nikon 28mm f/1.8 G is a fast, sharp, light, fast-focusing wide-angle lens.
It lets in more light than any f/2.8 zoom for shorter shutter speeds or lower ISOs.
AF is fast and accurate.
AF speed is as we'd expect: fast, but not instantaneous.
As with all AF lenses, it won't focus in dimmer light or any faster than slower (f/2.8 or f/4) AF lenses; Nikon's AF system doesn't care about lens speed.
AF was always dead-on.
Manual focus is a dream.
The manual-focus ring is most of the lens barrel!

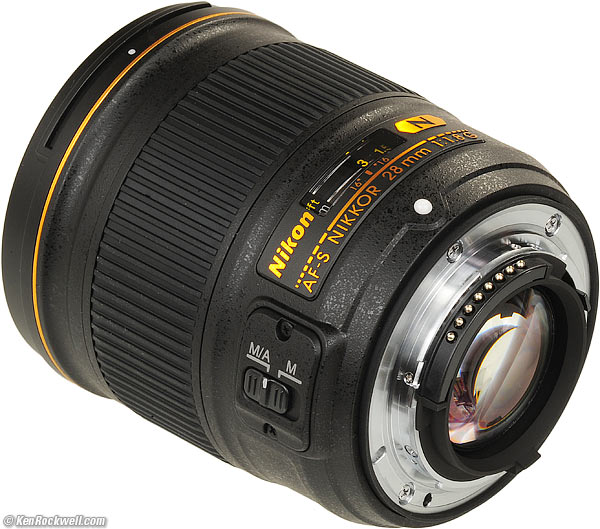

M/A - M Switch
Nikon goofed. This switch is supposed to be labeled "A - M."
The "M/A" position means autofocus. It's called "M/A" because you also can focus manually simply by grabbing the focus ring in this position.
The "M/A" position means autofocus. It's called "M/A" because back in the old days, when Nikon had almost caught up to Canon who had been doing this for ten years before, Nikon was trying to show off that you could focus manually while in the AF position.
Paint over the extra M if you're easily confused.
Bokeh, the character of out of focus backgrounds, not simply how far out of focus they are, is beautiful. Out-of-focus backgrounds never distract.
The color rendition is the same as my other Nikkor AF lenses.
Coma (saggital coma flare) often causes weird smeared blobs to appear around bright points of light in the corners of fast or wide lenses at large apertures. In lenses that have it, coma goes away as stopped down.
I can't see any coma in this aspherical lens.
This 28/1.8's distortion can be corrected by plugging a figure of +1.5 into Photoshop's lens distortion filter for shots at 3 meters (10 feet).
Used on recent digital cameras like the D90, D3100, D3200, D5000, D5100, D7000, D4, D800 and D800E, the distortion can be set to correct automatically in-camera! Be sure the latest firmware is loaded in the camera.
Nikon 28mm f/1.8 AF-S. enlarge.
Ergonomics are PERFECT!
This lens is perfectly sized to fit the hand. The only thing to grab is the huge focus ring, which may be grabbed at any time for instant manual-focus override.
If you want to force the lens into manual-focus only, the M/A - M slide switch is positioned perfectly under your thumb.
Falloff on FX and 35mm is visible at f/1.8 and f/2, and gone by f/2.8. With cameras that offer vignette correction, falloff is only minor even at f/1.8.
I've exaggerated this by shooting a gray field and placing these on a gray background.
67mm is a generous filter size.
There is no problem with vignetting, even with two stacked thick filters.
With a rotating Tiffen ND grad and Hoya HRT circular polarizer (total ring thickness excluding rear threads: 13.6mm), there was only the slightest vignetting at infinity, and none at close distances.
Don't waste your money on "thin" filters.
The filter ring never moves.
Of interest mostly to cinematographers focusing back and forth between two subjects, the image from the Nikon 28mm f/1.8 AF-S gets larger as focused more closely.
Green ghost under extreme conditions (D800E, f/11 at 1/500).
There are no ghosts or flare under any reasonable condition.
If you go out of your way to put the brilliant summer sun in your image and put a dark shadow on the other side to look for ghosts, you might almost see a green blob.
It doesn't vary with or without a multicoated filter on the front of the lens; which is excellent performance.
The dinky plastic hood is included.
I leave mine at home.
There are no lateral color fringes on the D800E, which corrects them automatically if there are any.
There is some spherochromatism, which is an entirely different chromatic aberration.
Nikon 28mm f/1.8 on full-frame at close-focus distance. (D800E, f/8 at 1/250).
Crop from above 36MP (D800E) image at 100%. If this image is 6" (15 cm) wide on your screen, the complete image would print at over 6 feet (2 meters) wide!
It doesn't get that close image-wise, but at least it's super-sharp.

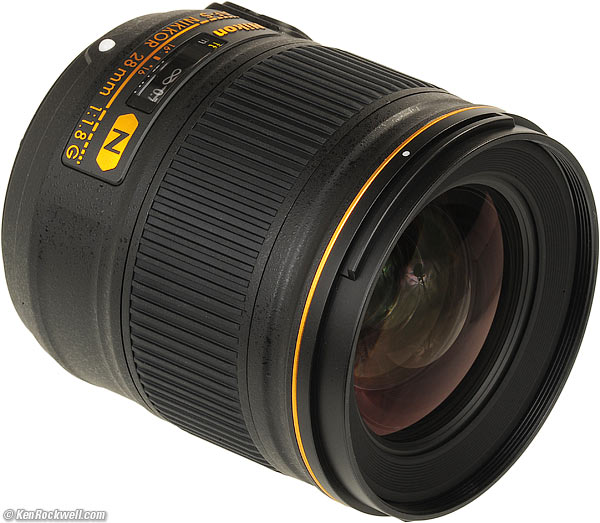

Nikon 28mm f/1.8 AF-S. enlarge.
The Nikon 28mm f/1.8 G AF-S is well made in China of all plastic, with a metal mount.
Plastic; rubber covered.
Feels like plastic.
Feels and looks like all plastic.
Mounting Index Dot
White plastic ball.
Debossed metal, 18k gold filled.
Sticker glued into a recess on the bottom of the lens.
US Model Signified by
USA 5-year warranty paperwork in box.
Rain seal at mount
Noises When Shaken
With those caveats, the Nikon 28mm f/1.8 G is super-sharp. It's biggest flaw on the 36 MP FX D800E is somewhat less sharpness in the zonal region (about halfway out to the FX corners) at larger apertures, and spherochromatism if contrasty subjects are not in perfect focus. The corners are sharp, even at f/1.8.
What I report below is visible only only on the test range, with subjects at infinity throughout the entire image. In real photography, the subject is never flat (if it is, it's just copying you could do on a scanner), and for real subjects, this lens is spectacularly sharp, especially at f/1.8.
On the 36 MP FX D800E: (it will seem even sharper on lower resolution cameras)
At f/1.8 and f/2: The 28mm f/1.8 AF-S is reasonably sharp all over, but a little less sharp in the zonal region (about halfway out to the FX corners).
At f/2.8: Most of the zonal region sharpens up.
At f/4: The zonal region is almost completely sharp.
At f/5.6: Sharp all over.
At f/8: Optimum aperture overall.
At f/11: corners and zonal areas are sharpest, while the central area dulls slightly from diffraction.
At f/16: Diffraction limits performance.
At f/22: Diffraction limits performance.
At f/32: Diffraction limits performance.
Here's Nikon's claimed MTF:
Nikon's specified MTF curve.
Note the slight drop in the zonal area at about 12mm radius.
Spherochromatism, sometimes mistakenly called "color bokeh" by laymen, is a minor aberration which can add slight color fringes to out-of focus highlights.
In normal use you'll never see anything amiss, but if you're more interested in pixels instead of actual pictures, look closely enough at bright highlights just slightly out of focus, and foreground highlights may have slight magenta fringes, and background highlights may have slight green fringes.
While its diaphragm is relatively round at large apertures, at middle and smaller apertures its 7-bladed diaphragm is relatively straight-sided, so we get reasonable 14-point sunstars on brilliant points of light.
The sunstars aren't as crisp as those from traditional manual focus and early AF lenses, but better than from most of the recent crop of rounded diaphragm blade lenses.
The Nikon 28mm f/1.8 G AF-S' all-plastic construction works and feels great today, but don't come whining to me in ten years if Nikon can't fix or supply circuit boards and AF motors when they break.
Likewise, if you drop a heavy camera on the lens or hit the front of the lens, I suspect the front half of the lens will separate from the rear.
I consider this lens disposable, meaning that Nikon warranties it for free for 5 years and ought to have parts for paid repair for at least ten years, but I expect that after a few decades that my manual-focus 28mm lenses will still be working like new in 2030, while this one has been tossed away.
Mechanically this 28/1.8G is the weakest lens here.
Ergonomicaly this is the best lens here for any autofocus or digital camera. It just goes, and weighs nothing. For manual focus cameras, use a manual focus lens like thw 28/2 AI-s, 28/2.8 AI or 28/2.8 AI-s for the best ergonomics.
Ethically, this 1.8G lens is the only one offshoerd to China. I won't support Communist governments' plans to control the world's manufacturing by buying something offshored to China if I have the choice. Personally, I bought the made-in-the-free-world 24/1.4G. Freedom isn't free; we have to vote with our dollars, even if it costs more to buy quality.
To make what could become a very long story short, when you test real lenses in a controlled environment, you quickly discover shot-to-shot and regional sharpness variations due to the precise positions of each and every lens element in these complex zooms and internal-focusing lenses. Therefore, depending on where you look in the frame, one lens will be sharper than the other, and look elsewhere, and another might be sharper. There are no absolute winners.
This new f/1.8 G lens is among the sharpest here, but not significantly better or worse than the others. Depending on where you look, one lens or another will be better.
This lens is unbeaten in the far FX corners.
In the center, most of these lenses are as good as each other at the same apertures, and stopped-down to f/8, they are all the same throughout the image on the 36 MP D800E.
This lens' weakest point is the zonal region about 12-18mm away from the image center, or about halfway out to the FX corners. In this important region at f/2.8 and wider, it's softer than most of the other lenses on my D800E.
The sharpness differences between lenses reported below aren't likely to be visible in actual use. The real reason to choose one lens or the other is how fast you need (f/1.4, f/1.8, f/2 or f/2.8), do you want autofocus, do you want professional-level construction (28/2 AI-s, 28/1.4D, 28/2.8 AI or 28/2.8 AI-s), or if you need instant manual-focus override (this 1.8G, 24-70/2.8G or 24/1.4G).

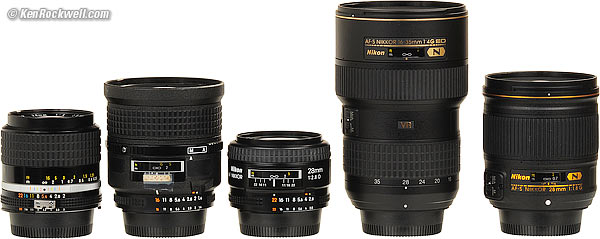

In no particular order, here are some one-on-one comparisons at the same apertures:
Compared to the 16-35 VR at 28mm, they are pretty much the same at each aperture.
Compared to the 24-70/2.8G at 28mm, they are the same in the center.
The 24-70/2.8G is sharper in the zonal regions, while this 28/1.8 is sharper in the far corners.
The 24-70/2.8G wins.
28mm f/1.4 AF-D
Compared to the 28/1.4D, they are the same in the center at the same large apertures.
The 28/1.4D is a bit sharper in the zonal region at the same large apertures, while this 28/1.8G is a little sharper in the far corners at large apertures.
I prefer the classic 28/1.4D optically, morally and mechanically.
The zonal regions are better in the 24/1.4G even at moderate apertures, while the corners are the same at all apertures.
The 24/1.4G wins.
28mm f/2.8 AF-D
This 28/1.8G wins.
28mm f/2 AI-s
Compared to the 28/2 AI-s, this 28/1.8G is contrastier at f/2. At f/2, the 28/2 AI-s shows lower contrast from spherical aberration, and the 28/2 AI-s shows coma in the corners. At f/2, this 28/1.8G is better, except in the zonal areas, where the 28/2 AI-s is sharper.
At f/4 and smaller, centers are the same, while the 28/2 AI-s is sharper in zonal areas and this 28/18G is better in the corners.
At f/8, they're the same, as are all these lenses.
I prefer the 28/2 AI-s on feel and morals. Your choice will depend on what camera you're using.
28mm f/2.8 AI-s
Compared to the 28/2.8 AI-s, they are the same in the center.
By f/8, these differences are almost gone.
I'd call it a toss-up optically.
28mm f/2.8 AI
Optically, a toss-up, while the 28/2.8 AI costs much less and is built much, much better.
This is a very handy lightweight, disposable lens. It's optically and ergonomically superb, but lightly built, expensive and made in China.
It's very fast (f/1.8), but that's mostly useful shooting in 35mm in dim light. Today's DSLRs work so well at insanely high ISOs that there's no reason to break the bank to get f/1.8 instead of f/2.8.
f/1.8 doesn't offer much narrower depth-of-field than f/2.8. If you want narrow depth-of-field, forget any 28mm or 24mm lens, and just use a longer lens like the 50mm f/1.8G or 50/1/8 D. Focal length has much, much more to do with depth-of-field than aperture. For fantastic ability to throw backgrounds out-of-focus, get the 85mm f/1.8G instead, which costs less.
Ideally if you carry this lens, carry only the lightweight 85mm f/1.8G in your pocket, and these are the only two lenses you'd ever need for anything and everything, especially if you use digital zoom (DX cropping set as a Function Button call-up) on FX cameras as I do. I'm serious; less is more.
Do not carry this lens with you if you're also carrying a zoom which covers 28mm, or anything in the 24-35mm range. You'll be duplicating, meaning you'll be carrying too much. You don't need to cover ever millimeter. See Assembling a System.
These caveats are all I can say bad about this great lens. Get one, and it's the only wide lens you'll ever need for a decade.
If I was working in nasty, dirty areas, I'd forget the cap, and use an uncoated 67mm Tiffen UV filter instead. Uncoated filters are much easier to clean, but more prone to ghosting.
If used with pro lenses, get a 67mm -> 77mm step-up ring, and treat this lens as a 77mm-threaded lens from now to eternity. This will save you a lot of aggravation, unless you really do build a system around 67mm filters.
