Canon 80-200mm f/2.8 L
Full-Frame EF
(1989-1995)

© 2012 KenRockwell.com. All rights reserved.

Intro   Specs   Performance   Compared   Usage   Recommendations

Please help KenRockwell..com

Canon 80-200mm f/2.8 L

Canon EF 80-200mm f/2.8 L (72mm filters, 5.9 feet/1.8m close-focus, 49.8 oz./1,412g with tripod collar, 45.0 oz./1,276g without collar, about $750 used.) enlarge. This free website's biggest source of support is when you use these links, especially this link directly to them at eBay (see How to Win at eBay) when you get anything, regardless of the country in which you live. It helps me keep reviewing these oldies when you get yours through these links, thanks! Ken.

March 2012, December 2011    Canon Reviews    Canon Lenses    All Reviews

See also:

Sample Images from Olde Southern California March 2012.

Canon 70-200 Comparison Table.

Canon 70-200mm f/2.8L II (2010-today)

Canon 70-200mm f/2.8L IS (2001-2010)

Canon 70-200mm f/2.8L (1995-today)

Canon 70-200mm f/4L IS (2006-today)

Canon 70-200mm f/4L (1999-today)



Introduction       top

Intro   Specs   Performance   Compared   Usage   Recommendations

Adorama pays top dollar for your used gear.

B&H Photo - Video - Pro Audio

Ritz Camera

This Canon EF 80-200mm f/2.8 L is a fantastic telephoto zoom. It was the world's top telephoto zoom in its heyday, and today is still one of the world's best professional zooms.

Its optics are as good as Canon's latest L-series telephoto zooms, the only differences being the lack of instant manual-focus override and Image Stabilization. If you can live without these, this lens sells for a fraction the price of the newest zooms, and is built tougher, has a better tripod collar and easier-to-use hood, and has much faster and easier zooming than today's bulky $2,500 Canon 70-200mm f/2.8L. If you don't mind sliding a switch for manual focus and don't need IS, I just saved you a lot of money.

Unlike today's more plasticy 70-200mm L zooms, this 80-200 2.8 has an all-metal barrel. It's one tough cookie; there are no rubber bumpers or plastic barrel sections.

This Canon EF 80-200mm f/2.8 L is optically a bit better than today's Canon 70-200mm f/4L IS, but not quite as good as the beyond extraordinary Canon 70-200mm f/2.8L. All of these three lenses are among the best zooms ever made.

This Canon EF 80-200mm f/2.8 L was so good that it won the professional market away from Nikon in the early 1990!

Canon saw the future in autofocus, while Nikon thought pros didn't care, and offered mostly clunky AF products instead. Nikon's competitive lens at the time was the pokey push-pull Nikon 80-200/2.8 AF. Nikon didn't introduce an 80-200 lens that focused as fast as this 1989 Canon lens until the Nikon 80-200mm f/2.8 AF-D (new) of 1997, eight years later. By that time, that new Nikon lens still used sloppy mechanical autofocus, while Canon's 80-200/2.8 lens had been updated two years before in 1995 to the slick 70-200/2.8 USM that added instant manual-focus override, something Nikon wouldn't copy until 1999, four years after Canon! The 80-200 is the most important pro lens, and when Nikon couldn't keep up, Canon won.

This lens, along with the EF 20-35mm f/2.8 L, EF 300mm f/2.8 L and EF 50mm f/1.0 L, was the lens that won the pro market for Canon. Canon skipped no expense with the design of this 80-200/2.8 L; Canon was betting its future on the EOS system, and this was the most important lens in that system to the pros Canon was trying to convert.

Nikon has never gotten the majority of the pro market back because there has never been any strong reason to dump everything and change brands again. Canon won when everyone switched to autofocus, and this was the lens that was designed so well that it helped Canon win it.

Not only is the 80-200/2.8 L very sharp, it also has less distortion than any other 70-200mm zoom except the newest Canon 70-200mm f/2.8L II.

No wonder this lens was in every pro's bag in the early 1990s.

This Canon EF 80-200mm f/2.8L lens was replaced in 1995 by the lighter and more plasticy Canon 70-200mm f/2.8 L USM, which weighs a little less and focuses a little closer. The main difference is that the newer 70-200/2.8 USM lens offers instant manual-focus override, while one must move a switch on this 80-200 lens. The Canon 70-200mm f/2.8 L USM is still sold today, but look out: its tripod collar is a pain and its zoom ring moves much more slowly and needs much more force to move it.



Canon 80-200 2.8 L

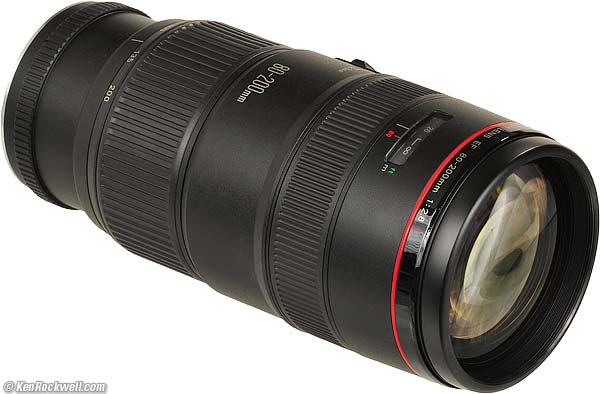

Canon 80-200 L without tripod collar. enlarge.



Compatibility and Formats

This professional L lens is optimized for 35mm film and full-frame digital, and of course works on 1.3x and 1.6x Canon cameras.

This Canon EF EOS 80-200mm f/2.8L works perfectly with every Canon EOS camera ever made, meaning every Canon DSLR and every Canon autofocus 35mm camera made since 1987.

This means of course it works great on today's 5D Mark II and Canon 7D, but it works just as well on my original Canon EOS 620 from 1987!

As a full-frame lens, this works on all Canon SLRs, regardless of format. As a professional lens, I will be reviewing this lens on full-frame.



Specifications         top

Intro   Specs   Performance   Compared   Usage   Recommendations



Name

Canon calls this the CANON ZOOM LENS EF 80-200mm f/2.8 L.

EF means "electronic focus," meaning that there is an autofocus motor in the lens itself. All Canon lenses since 1987 have been EF.

L only means as expensive as L; it means nothing technically.



Optics       top

16 elements in 13 groups.

Internal focus and internal zoom; nothing moves externally as focused or zoomed.



Diaphragm       top

Canon 80-200 2.8 L

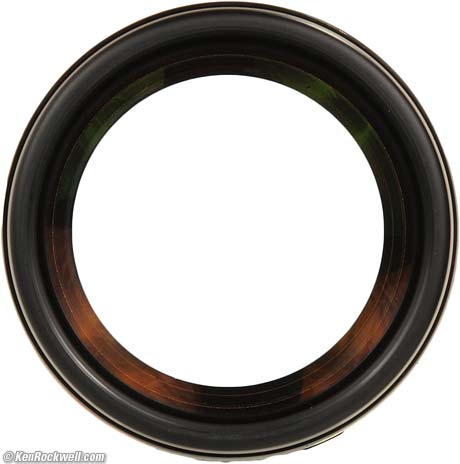

Front, Canon 80-200 L at 200mm and f/2.8 (EF diaphragm not visible). enlarge.

8 blades.

Stops down to f/32.

Circular at f/4, octagonal from f/8 to f/32.



Focal Length

80~200mm.

On 1.3x Canon cameras it will see angles-of-view similar to what a 105~260mm lens would see on a 35mm camera.

On 1.6x Canon cameras it will see angles-of-view similar to what a 125~320mm lens would see on a 35mm camera.



Angle of View (on 35mm and full-frame cameras)

30º ~ 12º diagonal.



Close Focus       top

5.9 feet (1.8m), specified, from the image plane.



Maximum Reproduction Ratio        top

1:7.7.



Hard Infinity Focus Stop?        top

No.

You have to let the AF system focus for you at infinity.



Focus Scale       top

Yes.

The ring turns from infinity to the closest focus distance in about 105.º



Depth-of-Field Scale       top

No.



Infra-Red Focus Indices       top

Yes, mark for the 80mm focal length.

The mark is probably for the 800 nm wavelength.



Filter Thread       top

72mm.

Metal.

Does not move, ever.



Tripod Collar       top

Included.

Removable.

Super-easy to use and remove.

It also works on the Canon 70-200mm f/4L IS.



Size       top

Canon specifies 3.3" (84mm) diameter by 7-5/16" (185.7mm) long.

It doesn't change size as zoomed.



Weight       top

45.025 oz. (1,276.4g) without tripod collar, measured.

49.805 oz. (1,411.95g) with tripod collar, measured.

52.635 oz. (1,492.2g) with caps, hood and tripod collar,, measured.



Collar alone: 4.780 oz. (135.5g).

Hood alone: 1.695 oz. (48.05g).



Canon specifies 46.4 oz. (1,330g), curiously an average between the collared and uncollared weights.



Hood       top

Canon 80-200mm f/2.8 L

Included ES-79 hood.

$50 plastic bayonet ES-79, included.



Canon 80-200mm f/2.8 L

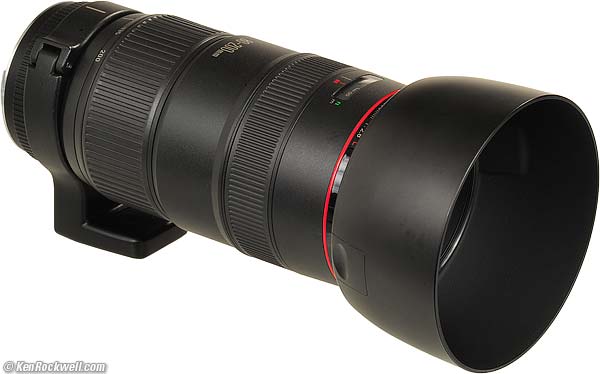

Canon EF 80-200mm f/2.8 L with included ES-79 hood and tripod collar. enlarge.

I address how well they work at Ergonomics.



Case       top

LH-D23 hard tubular case, included.



Caps       top

Canon 80-200mm f/2.8 L

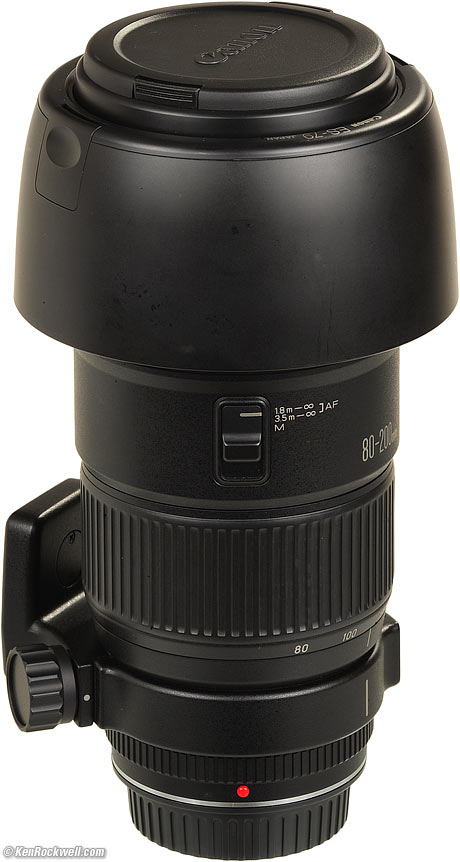

Canon EF 80-200mm f/2.8 L with hood, caps and tripod collar. enlarge.

72mm E72 front, included. (non-ultrasonic cap with black-on-black Canon logo.)

Standard EOS cap rear.



Announced       top

September 1989.



Quality       top

Made in Japan.



Price, USA        top

2011 December: about $750 used.



Performance       top

Intro   Specs   Performance   Compared   Usage   Recommendations

Overall    Autofocus    Bokeh   Breathing   Color   Distortion

Ergonomics   Falloff    Filters     Lateral Color Fringes

Mechanics   Sharpness   Spherochromatism   Sunstars



Overall     performance      top

The Canon 80-200mm f/2.8 L is optically and mechanically superb.

It's also big and heavy.

Every sports pro had one of these in his bag in the early 1990s.

This is a 2011 test of a made-in-1990 lens, and it still looks and works like new.



Autofocus     performance      top

Autofocus is fast but not silent.

The Arc Form Drive (AFD) motor whines a little as it zips around.



Auto/Manual Switching

You must move the AF-MF switch to change modes.



AF Speed

AF is fast!, as Canons always are.



AF Accuracy and Consistency

Even at f/2.8, all my shots are dead-on at every focal length on my Canon 5D Mark II.

Yes!



Manual Focus

Manual focus is easy; just move the switch and turn the ring.



Bokeh     performance      top

Bokeh, the quality of out-of-focus areas as opposed to the degree of defocus, is very nice.

While not quite as smooth as the bokeh of the Canon 70-200mm f/2.8L II, backgrounds are never distracting, regardless of the zoom setting.

I describe the bokeh of this 80-200/2.8 L as organic. Background blobs are always soft, but not Gaussian, either.



Focus Breathing     performance      top

Focus breathing (the image changing size as focused) is mostly of interest to cinematographers who don't want the image changing size ("breathing") as the lens is focused among different subjects.

The image from the Canon 80-200mm f/2.8 L always gets larger as focused more closely.



Color Rendition     performance      top

The color balance of this 80-200mm f/2.8 L matches my other Canon EF lenses.



Distortion     performance      top

The Canon 80-200mm f/2.8 L has very little distortion. In fact, it's almost as low as the newest Canon 70-200mm f/2.8L II, which is the world's lowest-distortion tele zoom.

It has some barrel distortion at 80mm and some slight pincushion distortion at 200mm, but rarely anything you'll ever see except at 80mm.

For more critical use, use these values in Photoshop's Lens Distortion tool to remove it:

on Full-Frame

Infinity
10' (3m)

(For comparison: 70-200 II at 10'/3m)

80mm
+3.0
+2.0
(+1.5)
100mm
+1.0
+0.7
(0.0)
135mm
-0.5
-0.5
(-1.0)
200mm
-1.5
-1.5
(-1.5)

© 2011 KenRockwell.com. All rights reserved.



Ergonomics     performance      top

This is an all-metal lens with better ergonomics than Canon's current tele zooms.

The zoom ring can be flicked with just a fingertip, much better than any other Canon f/2.8 tele zoom.

The tripod collar and hood attachment work much faster and easier than with current f/2.8 lenses.

The collar design is brilliant. It's easy to pop an assembled lens and camera system on and off using only your left hand.

The hood pops straight on with nothing to align, both in the regular and reversed positions. The only time one needs to press the buttons is to release the hood.

You've got to move a switch to get into manual focus, after which there is a bit of focus drag.



Falloff (darkened corners)     performance      top

Falloff is exactly the same as Canon's $2,500 Canon 70-200mm f/2.8L II!

Like most f/2.8 tele zooms, there is visible falloff wide-open at 200mm, and it goes away at shorter focal lengths or smaller apertures.

My Canon 5D Mark II (as of firmware 2.0.4) doesn't have the data to correct this automatically in its Peripheral Illumination Correction menu option. If you go find the data and load it into your camera (I'm too lazy), it should correct for this automatically.

I've greatly exaggerated this by shooting a flat gray target and presenting it against a gray background.



Canon 80-200mm f/2.8 falloff on full-frame

No peripheral illumination correction


f/2.8
f/4
f/5.6
80mm Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff
100mm Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff
135mm Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff
200mm Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff Canon 70-200mm f/2.8 falloff

© 2011 KenRockwell.com. All rights reserved.





Filters, Use with     performance      top

Filters are easy.

The sturdy and precise metal threads don't move, and there isn't any problem with vignetting. Feel free to use thick rotating filters. There is no need for expensive "thin" polarizers.



Lateral Color Fringes     performance      top

There are no lateral color fringes as seen on my Canon 5D Mark II at 135mm and 200mm.

At 100mm there is a almost no green/magenta color fringing.

At 80mm there is a very little bit of green/magenta color fringing.

Astoundingly, this is exactly the same as Canon's $2,500 Canon 70-200mm f/2.8L II!



Mechanics     performance      top

Canon 70-200mm f/2.8

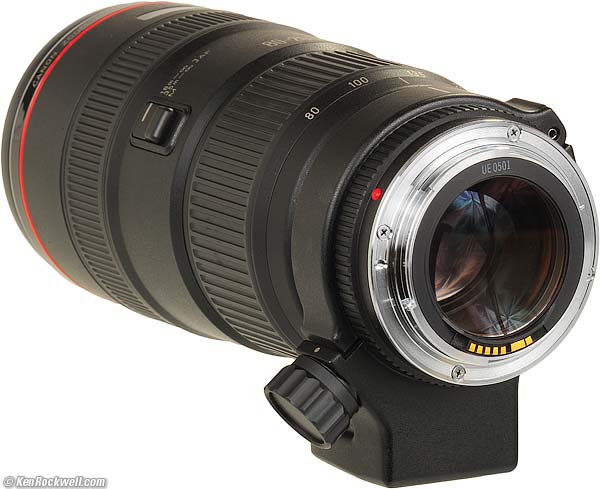

Rear, Canon 80-200 f/2.8 L. enlarge.

The Canon 80-200mm f/2.8 L is an all-alloy professional athlete. It's rock-hard and leaner than today's plumper offerings, but weighs more than you'd expect because it's all metal — not plastic.



Filter Threads

Metal.



Hood Mount

Metal.



Identity Ring

Metal.



Fore Barrel

Plastic.



Focus Ring

Metal, rubber-covered.



Mid-barrel

Metal.



AF Mode Switch

Plastic.



Internals

Metal.



Zoom Ring

Metal, rubber-covered.



Rear barrel

Metal.



Moisture seal at mount

No.



Mount

Chromed metal.



Markings

Paint.



Serial Number

Engraved into bottom of lens barrel and filled with white paint.



Date Code

Yes, printed into the rear light shield.

See Canon Date Codes to find your lens' birthday.

This sample is stamped UE0501, meaning May 1990.



Noises When Shaken

Moderate clunking.



Made in

Japan.



Sharpness     performance      top

Lens sharpness doesn't matter much, but it sure distracts amateurs who confuse lens sharpness with picture sharpness.

As shot on the 5D Mark II under test conditions at infinity, this Canon 80-200mm f/2.8 L isn't quite as good as the extraordinary Canon 70-200mm f/2.8L II, but it is better than today's Canon 70-200mm f/4L IS, making this one heck of a sharp lens:

Oceanside Harbor 4:17 PM 02 March 2012

Oceanside Harbor, 4:17 PM 02 March 2012. Canon 5D Mk II, 80-200/2.8 at 115mm, f/9 at 1/1,000 at D+ ISO 200. full-resolution.

At 80mm, it's always sharp in the center. The corners can be a but softer, cleaning up by f/8.

At 100mm, the center is a bit less contrasty at f/2.8, and right up there by f/4. The sides are a little softer at f/2.8, and super-sharp by f/5.6.

At 135mm, the center is a bit less contrasty at f/2.8, and right up there by f/4. The sides are a little softer at f/2.8, and super-sharp by f/5.6.

At 200mm, it's always sharp in the center. The corners can be a but softer, cleaning up by f/8.

Diffraction starts to dull everything by f/11. f/8 is optimum.



Spherochromatism     performance      top

I see no spherochromatism

Spherochromatism, misnamed "color bokeh" by laymen, is when out-of-focus highlights take on color fringes. The Canon 80-200/2.8L's out-of-focus highlights have no color fringes.

Spherochromatism is a completely different aberration from lateral color fringes.



Sunstars     performance      top

With its 8-bladed diaphragm, this Canon 80-200mm f/2.8 L should make boring Canon-standard 8-pointed sunstars on brilliant points of light.



Compared       top

Intro   Specs   Performance   Compared   Usage   Recommendations

See my Canon 70-200 Comparison Table.





Usage       top

Intro   Specs   Performance   Compared   Usage   Recommendations



Focus Limiter and Mode Switch

Canon 80-200mm f/2.8 L

Focus limiter.

Leave it in the "1.8m ~ ∞ AF " position.

The "3.5m ~ ∞ AF " position prevents the lens from focusing any closer than 3.5 meters (11 feet). You might use this if you're shooting action at a distance and the lens is wasting time trying to focus this close and back looking for things.

The manual focus ring is ignored in either AF position.

The M position is manual focus.



Tripod Collar

Canon 80-200mm f/2.8 L

Included tripod collar.

This collar's release is brilliant: just rotate a quarter-turn and pull as shown to open. You can remove or attach the camera and lens combo all at once. To close, just push the top half back down to latch.

Once latched closed, just rotate the knob slightly to tighten and loosen.

Yes, you can have your rig on a tripod, and with one quick flick of your left hand, take the whole lens and camera system on and off in a flash. With the newest $2,500 Canon 70-200mm f/2.8L II, this same operation takes a few hands and several minutes of cursing to remove the body from the lens and then extract the lens out the back of the tripod mount, and then reattach the lens to the camera body.

This tripod collar is much better than on newer lenses that use a dopey screw system and also require you to take the lens off the camera to slide in and out. This collar uses an offset pin and latch, not a screw.

Better still, this lens needs no exposed screw heads on the lens barrel like the newer lenses. This 80-200/2.8 lens barrel is completely smooth so it's comfortable to hand-hold, while the new lenses have uncomfortable exposed screw heads on the barrel to latch with their goofy collars. What good is the IS of other lenses if you aren't going to want to hand-hold them because of uncomfortable screw heads poking out where the collar is supposed to be?

Even more better, this same brilliant collar also works on the Canon 70-200mm f/4L IS!



Hood

Canon 80-200mm f/2.8 L

Included ES-79 hood.

The ES-79 hood is much easier and more pleasant to use than the bayonet monstrosities of newer lenses. The ES-79 just pops right on and locks automatically, forward or reversed, with no need ever to align anything.

The only time you need to press anything is to release it.



Recommendations       top

Intro   Specs   Performance   Compared   Usage   Recommendations

If you want unexcelled mechanical toughness and precision, top-flight ergonomics and superb optics, but prefer a bargain over paying for IS and instant manual-focus override, this is your lens.

Also look at the Canon EF 20-35mm f/2.8 L of the same era, which shares the same tough all-metal barrel and 72mm filter size.

Personally, as an outdoor nature and landscape shooter, I'm too lazy to want to haul this beast around the woods with me. I own the 70-200mm f/4 IS for when I want a zoom, and use the EF 100mm f/2 for when I can forgo a zoom and want fantastic optics in an even smaller package.

If you've found the time I've spent sharing this professional review helpful, this free website's biggest source of support is when you use these links, especially this link directly to them at eBay (see How to Win at eBay) when you get anything, regardless of the country in which you live. It helps me keep reviewing these oldies when you get yours through these links, thanks! Ken.

Thanks!

Ken.



More Information:

Canon's Museum.



Help me help you         top

I support my growing family through this website, as crazy as it might seem.

The biggest help is when you use any of these links to Adorama, Amazon, eBay, Ritz, Calumet, J&R and ScanCafe when you get anything, regardless of the country in which you live. It costs you nothing, and is this site's, and thus my family's, biggest source of support. These places have the best prices and service, which is why I've used them since before this website existed. I recommend them all personally.

If you find this page as helpful as a book you might have had to buy or a workshop you may have had to take, feel free to help me continue helping everyone.

If you've gotten your gear through one of my links or helped otherwise, you're family. It's great people like you who allow me to keep adding to this site full-time. Thanks!

If you haven't helped yet, please do, and consider helping me with a gift of $5.00.

As this page is copyrighted and formally registered, it is unlawful to make copies, especially in the form of printouts for personal use. If you wish to make a printout for personal use, you are granted one-time permission only if you PayPal me $5.00 per printout or part thereof. Thank you!



Thanks for reading!





Mr. & Mrs. Ken Rockwell, Ryan and Katie.



Home  Donate  New  Search  Gallery  Reviews  How-To  Books  Links  Workshops  About  Contact
