Canon 100-300mm
Full-Frame EF USM (1990-2008)
© 2014 KenRockwell.com. All rights reserved.

Intro   Specs   Performance   Compared   Usage   Recommendations   More

Please help KenRockwell..com

Canon 100-300mm USM

Canon EF 100-300mm f/4.5-5.6 USM (58mm filter thread, 17.8 oz./504g, 5'/1.5m close focus, about $75 used). enlarge. I'd get it at this link directly to them at eBay (see How to Win at eBay) or at this link to them at Amazon.

My biggest source of support for this free website is when you use those or any of these links when you get anything, regardless of the country in which you live. It helps me keep adding to this free website when you get your things through these links — but I receive nothing for these efforts if you buy elsewhere. Thanks for your support! Ken.



July 2014   Canon Reviews   Canon Lenses   All Reviews



Introduction         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

Adorama pays top dollar for your used gear.

B&H Photo - Video - Pro Audio

The Canon 100-300mm USM is a sleeper full-frame telephoto zoom lens. With the automatic lens correction of today's full-frame digital cameras, this lens works far better today than it ever did on 35mm film — and for about $75 used, it's the steal of the century.

It's a fast-focussing, close-focusing, lightweight and long focal-length tele ideal for many things, especially where you need a long zoom and light weight, or a low price for a high-quality lens. Ideal for digital cinematography, it has no Focus Breathing.

It was an extremely popular lens in the 1990s for use with mid-range 35mm EOS SLRs. Most of you reading this today would have bought one of these new back then, which is why we have so manu available today the therefore why they are so inexpensive used. If you know How to Win at eBay, I only paid $51 for this sample, delivered to my door!

The 100-300mm is a mid-line lens. By "mid-line," it's a lens much better than the plastic-mount junk, and only a fraction the price of Canon's L lenses. Full-frame mid-line lenses aren't made anymore, so today we have little choice other than the L lenses or the junky 75-300mm lenses.

This lens has a metal mount and a mostly plastic barrel.

It has instant manual-focus override; just flick the focus ring with a fingertip for instant manual focus at any time — much better than today's inexpensive teles from Canon.

It works with all Canon EOS cameras, meaning every DSLR of any format, as well as every 35mm autofocus SLR from 1987's EOS 650 to today's EOS 1V, 6D and 5D Mark III.

Canon has made many other 100-300mm lenses before this one. This is the newest, with an 8-bladed diaphragm, USM focus motor and instant manual-focus override.

Canon EF 100-300mm USM

Canon EF 100-300mm USM zoomed to 300mm. bigger.



Specifications         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

Name

Canon calls this the Canon Zoom Lens EF 100-300mm USM ULTRASONIC (USM).

   EF: Electronic Focus. All modern Canon lenses focus with a motor in the lens.

   ULTRASONIC (USM): UltraSonic focus Motor. The focus motor is silent.



Optics

Canon EF 100-300mm USM diagram

Canon EF 100-300mm USM internal diagram.

13 elements in 10 groups.

Internal focus, nothing moves externally as focussed.



Diaphragm

Canon 100-300mm USM

Front, Canon 100-300 USM at 300mmm (EF diaphragm not visible).

8 straight blades.

Stops down to f/32-40.



Close Focus

5 feet (1.5m).



Maximum Reproduction Ratio

1:3.8 (0.26x).



Focal Length

100-300mm.

On APS-C cameras, it gives angles of view similar to what an 150-450mm lens would give on a 35mm or full-frame camera. See also Crop Factor.



Angle of View

24 - 8.2º on full-frame.



Maximum Aperture

f/4.5-5.6.



Size

2.9" (73mm) diameter x 4.8" (121.5mm).



Weight

17.775 oz. (503.9g), actual measured.

Rated 19.0 oz. (540g).



Announced

June 1990.



Canon Item Code

2565A003, model 21496F.



Price, USA


NYC discount price, corrected for inflation in 2014 (price at the time)
12/1991
$470 ($270)
12/1992
$440 ($260)
12/1994
$500 ($310)
12/1995
$510 ($330)
12/1996
$470 ($310)
2005
$325 ($275)
2014
about $75 used



Performance         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

Overall    Autofocus    Bokeh   Breathing   Color

Distortion   Ergonomics   Falloff    Filters

Lateral Color Fringes   Macro   Max & Min Apertures

Mechanics   Sharpness   Sunstars



Overall     performance      top

The Canon 100-300mm USM is optically wonderful in the center, while if you want to split hairs, it can be softer at the sides — but few things are in focus on the sides to worry about anyway.

Ergonomically it's a dream; just grab and go and and you've got 300mm in your hands.

It has no Image Stablization, so you'll want to be sure to shoto at at least 1/250 to 1/500 at the 300mm end.



Focus     performance      top

AF is fast, silent and accurate.



AF Speed

Autofocus is nearly instantaneous, as well as nearly silent.



Auto/Manual Switching

Just grab the focus ring anytime for instant manual-focus override.

To lock it into manual mode only, move the switch on the lens, by your thumb.



Bokeh     performance      top

Bokeh, the quality of out-of-focus areas as opposed to the degree of defocus, is quite good, especially at the 300mm end.

Focal length is far more important than aperture, so try your head shots at 300mm and you'll be quite pleasantly surprised compared to what you get on a 70-200 at 200mm and f/2.8.



Color Rendition     performance      top

The color balance of this 100-300 seems the same as my other Canon EF lenses.



Distortion     performance      top

The Canon 100-300 USM has minor barrel distortion:

For more critical use, use these values in Photoshop's Lens Distortion tool to remove the distortion. These aren't facts or specifications, they are the results of my research that requires hours of photography and calculations on the resulting data.

On Full-frame and 35mm

at 10' (3m)

at infinity


100mm
-1.5
-1.5
135mm
-2.5
-2.5
200mm
-4.0
-4.0
300mm
-4.0
-4.0

© 2014 KenRockwell.com. All rights reserved.

As the table shares, the distortion doesn't change with distance.



Ergonomics     performance      top

Canon EF 100-300 USM

Canon EF 100-300mm USM. bigger.

Ergonomics are fantastic.

Most of the lens is the zoom ring; just grab and go. Zooming is more precise than it is fast.

The narrow ring towards the rear is the manual focus ring. It takes but a fingertip to slide it back and forth for manual focus.

I wish my more expensive L lenses handled this well!



Falloff (darkened corners)     performance      top

There is strong falloff wide-open. This was a problem on 35mm film, since we usually had to shoot wide open to hand-hold, and then we had no easy way to correct it.

On a DSLR with an automatic correction profile like the 6D, 5D Mk III and 1DX, the falloff goes away! This is one of ways that this lens works so much better today than it ever did when new.

I've greatly exaggerated the falloff by shooting a flat gray target and presenting it against a gray background:



Canon 100-300mm USM falloff on Full-Frame

Uncorrected


f/5.6
f/8
100mm
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
135mm
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
200mm
max. is f/5.6 ->
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
300mm
max. is f/5.6 ->
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff

© 2014 KenRockwell.com. All rights reserved.



Corrected with profile in 5D Mk III


f/5.6
f/8
100mm
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
135mm
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
200mm
max. is f/5.6 ->
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff
300mm
max. is f/5.6 ->
Canon 35mm f/2 IS falloff
Canon 35mm f/2 IS falloff

© 2014 KenRockwell.com. All rights reserved.



Filters, Use with     performance      top

There's no problem with vignetting even with a stack of several filters.

There's no need for thin filters; regular thick and rotating filters work great.



Focus Breathing     performance      top

Focus breathing (the image changing size as focused) is mostly of interest to cinematographers who don't want the image changing size ("breathing") as the lens is focused among different subjects.

More good news: I can't see any focus breathing in this lens!



Lateral Color Fringes     performance      top

The lens profile corrects this automatically.

On my 5D Mark III with a lens profile loaded, there is no lateral color fringing at 100mm.

There is a tiny bit of magenta-green at 200mm and 300mm.



Macro     performance      top

With a maximum repro ratio of just over 1/4 life-size, it gets very close at the 300mm setting.



Maximum and Minimum Apertures        top


Maximum Aperture
Minimum Aperture
100mm
f/4.5
f/32
135mm
f/5
f/36
200mm
f/5.6
f/40
300mm
f/5.6
f/40



Mechanics     performance      top

Canon 100-300 USM

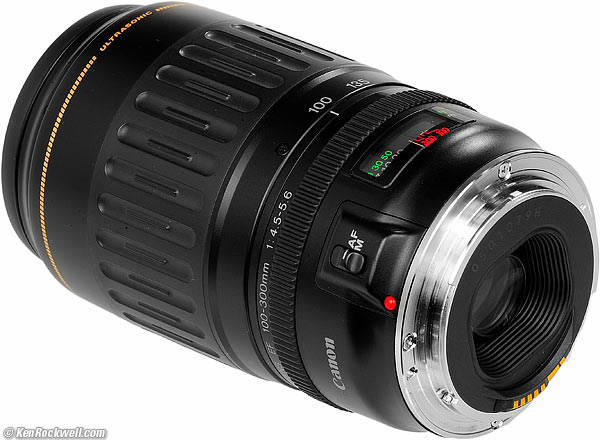

Rear, Canon 100-300 USM. enlarge.

The Canon 100-300 USM is mostly plastic, with a metal mount.



Filter Threads

Plastic.



Hood Mount

Plastic.



Identity Ring

Painted on plastic ring near the focus ring.



Focus Ring

Rubbery plastic.



Barrel

Plastic.



Moisture seal at mount

No.



Mount

Chromed metal.



Markings

Paint.



Serial Number

Hot-stamped into the rear black plastic light shield.



Date Code

None found.



Noises When Shaken

Mild clunking.



Made in

Made in Japan.



Sharpness     performance      top

Image sharpness depends more on you than your lens, and lens sharpness doesn't mean much to good photographers. It's the least skilled hobbyists who waste the most time blaming fuzzy pictures on their lenses, while real shooters know that few photos ever use all the sharpness of which their lenses are capable due to subject motion and the fact that real subjects are rarely perfectly flat.

This said, this Canon 100-300 is very sharp throughout most of the image at all apertures, but softer in the sides and corners at larger apertures. This will vary away from the center sample-to-sample and shot to shot.

If you want to impress people, sure, go ahead and buy the $2,500 70-200/2.8 IS L II to show me how smart you are, but for almost all practical purposes, the photos from this lens will be the same.



Canon's specified MTF curves:

Canon 100-300mm USM MTF
Canon 100-300mm USM MTF
MTF at 100mm
MTF at 300mm



Sunstars     performance      top

With its octagonal diaphragm, this Canon 100-300mm should make 8-pointed sunstars on brilliant points of light.



Compared         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

This lens has much better ergonomics than most of the 75-300 and 70-300mm lenses which require moving a switch to get between auto and manual focus.

No, it's not as sharp as the L lenses if you're splitting hairs, but this 100-300 is smaller and lighter and much less expensive. My lightweight 70-200/4 L IS is my favorite, and this 100-300 still weighs only 2/3 as much.



Usage         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More



Prophylactic Filters

Seeing how inexpensive this lens is today, I'd use an inexpensive UV filter like the 58mm Multicoated Hoya Alpha UV.

I use a filter all the time to protect my lens against my own stupidity. I never know when something is going to hit me.



Sharpening

I shoot with JPG sharpening set to 7.



Lens Pairing

If you want historical relevance, this lens was often shot along with the 20-35mm USM, and either the 28-105 USM or 24-85mm USM midrange zooms.

See Assembling a System for more.



Recommendations         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

This is a great little lens. It's easy to use, shoots fast and gives great results today. For under $100, you can't go wrong for use on a DSLR.

Oddly It's not that great for 35mm film, since it's slow and has no IS. For film I'd use an IS lens instead, since at 300mm you'll be at 1/250 on a good day with Velvia at f/5.6, which is the edge of where you can shoot without IS hand held.

With digital, no problem. Modern cameras update the optics of this 100-300mm and their higher ISOs eliminate the need for VR.
