Canon 20-35mm f/2.8 L
Full-Frame EF
(1989-1995)

© 2012 KenRockwell.com. All rights reserved.

Intro   Specs   Performance   Compared   Usage   Recommendations

Canon 20-35mm f/2.8 L

Canon EF 20-35mm f/2.8 L (72mm filters, 1.6'/0.5m close-focus, 19.4 oz./549g, about $600 used.) enlarge. This free website's biggest source of support is when you use these links, especially this link directly to them at eBay (see How to Win at eBay) when you get anything, regardless of the country in which you live. It helps me keep reviewing these oldies when you get yours through these links, thanks! Ken.

Julian Hotel

Sample Image: Canon 5D Mk II with Canon EF 20-35mm f/2.8 L. Full-Resolution.



May 2012, December 2011    Canon Reviews    Canon Lenses    All Reviews



Sample Images from Olde Southern California March 2012.

How to Use Ultrawide Lenses

Canon Ultrawide Lenses Compared



Canon 16-35mm f/2.8 L II (2007-today)

Canon 16-35mm f/2.8 L (2001-2007)

Canon 17-40mm f/4 L (2003-today)

Canon 17-35mm f/2.8 L (1995-2001)

Canon 20-35mm USM (1993-2007)

Canon 20mm f/2.8 USM (1992-today)

Canon 20-35mm f/2.8 L (1989-1995)

Tokina 17-35mm f/4 (2011-)

Please help KenRockwell..com

Introduction       top

Intro   Specs   Performance   Compared   Usage   Recommendations

Adorama pays top dollar for your used gear.

Amazon

B&H Photo - Video - Pro Audio

The Canon EF 20-35mm f/2.8 L is a tough little hunk of an all-metal lens that feels great. The precise metal zoom ring flicks with a fingertip, and the whole lens feels like solid metal because it is. When new, it sold for the equivalent of over $2,000!

The Canon EF 20-35mm f/2.8 L is optically as good as today's newest Canon 16-35mm f/2.8L II and Canon 17-40mm f/4L, but smaller, better made and much less expensive to buy used.

This Canon EF 20-35mm f/2.8 L was Canon's first professional wide-angle zoom. Canon was trying to take the professional market away from Nikon with their new EOS cameras and EF lenses when this lens was introduced. This lens was built a few steps better than any of Nikon's autofocus offerings. Canon saw the future in autofocus, while Nikon thought pros didn't care and offered mostly amateur AF products. Nikon had absolutely no professional AF ultrawide zooms available for four years after Canon introduced this lens, and this lens is still much more nicely made than Nikon's 20-35mm f/2.8 of 1993.

Canon made earlier FD-series L wide zooms, but the Canon FD system was never a system taken seriously by mainstream pros. This is why Canon gambled that they could dump the entire FD system and start from scratch with a completely new and incompatible system for autofocus cameras, the EOS system and EF lenses.

Canon won; Canon's gamble won them the pro market by the early 1990s because Canon's AF system worked great, and Nikon's didn't.

This lens, along with the EF 80-200mm f/2.8 L, EF 300mm f/2.8 L and EF 50mm f/1.0 L, was the lens that won the pro market for Canon. Nikon has never gotten the majority of the pro market back because there has never been any strong reason to dump everything and change brands again. Canon won when everyone switched to autofocus, and this was the lens that was designed so well that it helped Canon win it.

Mechanics are better than today's lenses, optics are the same and the price is much lower. The only gotcha is that there is no instant manual-focus override: you must move the switch on the lens to get between auto and manual focus. This isn't a big deal for wide lenses, which autofocus much better and faster than we can see to focus them manually. The good news is that unlike all the current Nikon and Canon lenses, knocking the focus ring by accident never moves the focus unintentionally. Feel free to turn the focus ring all you want while in AF, it's ignored. I'm always knocking the focus ring by accident on my Canon and Nikon 16-35mm lenses, and never have this problem with this solid Canon 20-35 L.



Compatibility and Formats

This L lens is optimized for 35mm film and full-frame digital, and of course works on all 1.3x and 1.6x Canon cameras.

This Canon EF EOS 20-35mm f/2.8L works perfectly with every Canon EOS camera ever made, meaning every Canon DSLR and every Canon autofocus 35mm camera made since 1987.

This means of course it works great on today's 5D Mark II and Canon 7D, but it works just as well on my original Canon EOS 620 from 1987!

As a full-frame lens, this works on all Canon SLRs, regardless of format. As a professional lens, I will be reviewing this lens on full-frame.



Canon 20-35mm f/2.8 L

Canon 20-35 2.8 L. enlarge.





Specifications         top

Intro   Specs   Performance   Compared   Usage   Recommendations



Name

Canon calls this the CANON ZOOM LENS EF 20-35mm f/2.8 L.

EF means "electronic focus," meaning that there is an autofocus motor in the lens itself. All Canon lenses since 1987 have been EF.

L only means as expensive as L ; it means nothing technically.



Optics       top

15 elements in 12 groups.

The front element is an expensive ground aspheric.

Floating elements; the optical design optimizes itself as focused.

Internal focus and internal zoom; nothing moves externally as focused or zoomed, although the front and rear groups do pump in and out inside the barrel.



Focal Length

20-35mm.

On 1.3x Canon cameras it will see angles-of-view similar to what a 26~45mm lens would see on a 35mm camera.

On 1.6x Canon cameras it will see angles-of-view similar to what a 32~56mm lens would see on a 35mm camera.

Clearly this is a silly choice for anything other than a full-frame or 35mm camera.



Angle of View (on 35mm and full-frame cameras)

94º ~ 63 º diagonal.

62º ~ 38 º vertical.

84º ~ 54º   horizontal.



Close Focus       top

1.6 feet (0.5m) from the image plane, specified.



Maximum Reproduction Ratio       top

1:11.11.



Extension Tubes

Use the Canon EF-25 or Canon EF25 II to get close-ups to 0.92x at 35mm and 0.66x at 20mm.



Diaphragm       top

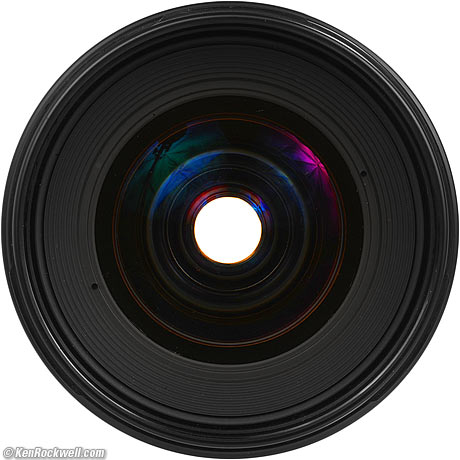

Canon 20-35 L

Front, Canon 20-35 L at 35mm and f/2.8 (EF diaphragm not visible). enlarge.

6 blades.

Stops down to f/22.



Focus Scale       top

Yes.

The ring turns from infinity to the closest focus distance in about 130.º



Depth-of-Field Scale       top

No.



Infra-Red Focus Indices       top

Canon 20-35mm f/2.8 L

Focus Scale, Canon 20-35/2.8L. enlarge.

Yes, marks for 35mm, 28mm, 24mm and 20mm focal lengths.

These marks are probably for the 800 nm wavelength.



Filter Thread       top

72mm.

Metal.

Does not move, ever.



Size       top

Canon specifies 3.1" (79.2mm) diameter by 3.5 " (89mm) long.

It doesn't change size as zoomed or focused.



Weight       top

19.360 oz. (548.8g), measured.

Canon specified 19.1 oz. (540g) in 1989.

Canon specifies 20.1 oz. (570g).



Hood       top

Plastic bayonet EW-75, included.



Case       top

LH-D13 hard cylindrical case, included.



Caps       top

72mm E72 front, included. (non-ultrasonic cap with black-on-black Canon logo.)

Standard EOS cap rear.



Introduced       top

October 1989, four full years before Nikon's clumsy 20-35mm f/2.8 AF of late 1993.



Quality       top

Made in Japan.



Price, USA        top

2011 December: about $600 used.

1995 December: $1,570 (equivalent to $2,350 with inflation in 2012).

1994 December: $1,469 (equivalent to $2,275 with inflation in 2012).

1992 December: $1,079 (equivalent to $1,775 with inflation in 2012).

1991 December: $1,051 (equivalent to $1,775 with inflation in 2012).

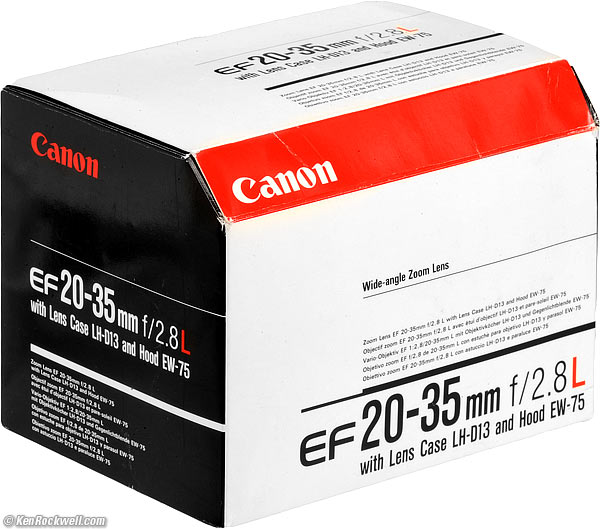

Canon 20-35mm f/2.8 L

Box, Canon 20-35/2.8 L. bigger.



Performance       top

Intro   Specs   Performance   Compared   Usage   Recommendations

Overall    Autofocus    Bokeh   Breathing   Color   Distortion

Ergonomics   Falloff    Filters     Flare     Lateral Color Fringes

Mechanics   Sharpness   Spherochromatism   Sunstars



Overall     performance      top

The Canon 20-35mm f/2.8 L is mechanically superb and optically as good as Canon's current ultrawide zooms.

Every sports pro had one of these in his bag in the early 1990s.

This is a 2011 test of a made-in-1994 lens, and it still works great.



Autofocus     performance      top

Autofocus is fast but not silent.

The Arc Form Drive (AFD) motor whines a little as it zips around.



Auto/Manual Switching

You must move the AF-MF switch to change modes.



AF Speed

AF is fast!, as Canons always are.



AF Accuracy and Consistency

Even at f/2.8, all my shots are dead-on at every focal length on my Canon 5D Mark II.

Yes!



Manual Focus

Manual focus is easy; just move the switch and turn the ring.



Bokeh     performance      top

Bokeh, the quality of out-of-focus areas as opposed to the degree of defocus, is beautiful. Backgrounds melt away if you're at f/2.8 and are close enough to throw the background out of focus.



Focus Breathing     performance      top

Focus breathing (the image changing size as focused) is mostly of interest to cinematographers who don't want the image changing size ("breathing") as the lens is focused among different subjects.

The image from the Canon 20-35mm f/2.8 L gets very slightly smaller as focused more closely. I doubt you'd ever notice it.



Color Rendition     performance      top

The color balance of this 20-35mm f/2.8 L matches my other Canon EF lenses.



Distortion     performance      top

The Canon 20-35mm f/2.8 has plenty of barrel distortion at the 20mm end and not much pincushion distortion at the 35mm end.

Distortion becomes more barrel at closer distances.

Use these values in Photoshop's Lens Distortion tool to remove most of it:

at 10' (3m)
20mm
+2.5
24mm
+1.5
28mm
0.0
35mm
-1.0

© 2011 KenRockwell.com. All rights reserved.

Like all Canon ultrawide lenses even today, this distortion is complex and never completely corrects with a simple tool like Photoshop. There is always some residual waviness left after these corrections at all focal lengths.

Guess what? It has less distortion than any other Canon ultrawide zoom. Surprise!



Ergonomics     performance      top

Canon 20-35mm f/2.8 L

Canon 20-35/2.8L. enlarge.

This is a solid little hunk of lens. It feels great; it's all made of alloy, not nasty plastic like the newest Canon 16-35mm f/2.8L II and Canon 17-40mm f/4L.

The only downside is needing to move the AF-MF switch to swap modes, but the good side of that is that one never needs to worry about bumping the focus ring by accident in autofocus and messing up a shot by accident as happens with newer USM lenses.



Falloff (darkened corners)     performance      top

Some falloff is visible at f/2.8 at 20mm, and otherwise it's invisible.

My Canon 5D Mark II (as of firmware 2.0.4) doesn't have the data to correct this automatically in its Peripheral Illumination Correction menu option. If you go find the data and load it into your camera (I'm too lazy), it should correct for this automatically.

I've greatly exaggerated this by shooting a flat gray target and presenting it against a gray background.



Canon 20-35mm f/2.8 L falloff on full-frame

No peripheral illumination correction


f/2.8
f/4
f/5.6
20mm Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff
24mm Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff
28mm Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff
35mm Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff Canon 20-35mm f/2.8 falloff

© 2011 KenRockwell.com. All rights reserved.





Filters, Use with     performance      top

Filters are easy; there's no problem with vignetting even with thick or rotating filters.

The sturdy metal threads don't move.

Fat 7.65mm thick (excluding rear threads) Tiffen filters work great.

My 8.6mm-thick (excluding rear threads) rotating grad filter likewise works without vignetting, but it's close.

There is no need for expensive "thin" polarizers.



Flare and Ghosts     performance      top

Canon 20-35 L flare

Canon 20-35 L flare, worst case. much bigger. (5D Mk II, 20mm at f/8.)

The 20-35 has a little bit more ghosts than the newer Canon ultrawide zooms, but not by much.

To get it to look this bad, I had to zoom out to 20mm, put the direct disk of the sun in the corner, put something dark in the rest of the frame, and lock the exposure on the darker object to increase the exposure to show this.

Other than this nonsense, it's flare and ghost free.



Lateral Color Fringes     performance      top

The curse of Canon, there are plenty of lateral color fringes. Unlike Nikon digital SLRs, Canon DSLRs still can't correct for this automatically, so you'll often see green-red fringes at the sides if you're looking for them.

If it really bothers you, shoot Nikon instead of Canon, because the newest Canon 16-35mm f/2.8L II and Canon 17-40mm f/4L have some, too, although a little less.



Mechanics     performance      top

Canon 20-35mm f/2.8

Rear, Canon 20-35 f/2.8 L. enlarge.

The Canon 20-35mm f/2.8 L is all metal: barrels and all. It's much tougher than the plasticy Canon 16-35mm f/2.8L II and Canon 17-40mm f/4L, HA!



Filter Threads

Metal.



Hood Mount

Metal.



Identity Ring

Metal.



Fore Barrel

Metal.



Focus Ring

Metal, rubber-covered.



Mid-barrel

Metal.



Internals

Seem like metal.



Zoom Ring

Metal, rubber-covered.



Zoom Cams

Feel like metal.



Rear barrel

Metal.



Moisture seal at mount

No.



Mount

Chromed metal.



Markings

Paint.



Serial Number

Engraved into bottom of lens barrel and filled with white paint.



Date Code

Yes, printed on the rear light shield.

See Canon Date Codes to find your lens' birthday.

This sample is stamped UI 0203, meaning February 1994.



Noises When Shaken

Mild rattling.



Made in

Japan.



Sharpness     performance      top

Lens sharpness doesn't matter much, but it sure distracts amateurs who confuse lens sharpness with picture sharpness.

Yellow

Yellow. much bigger. (5D Mk II, 35mm at f/8.)



Julian Hotel

Julian. Canon 5D Mk II with Canon EF 20-35mm f/2.8 L, 20mm at f/8. Full-Rez.



As shot on the 5D Mark II, it's as sharp as the Canon 16-35mm f/2.8L II and Canon 17-40mm f/4L. I compared them all directly against one another at the test range.

Important is that these are the most difficult of all photographic lenses to design and build. Ultrawide lenses are difficult because of the crazy variations in angles involved and the tighter manufacturing tolerances required for the shorter focal lengths. Zooms make everything ten times more difficult, both in design and in manufacturing tolerances.

Therefore if you try these comparisons for yourself, know that every shot will be different, and every position of the frame in every shot will be different. One side will be sharper than the other, and different focal lengths will vary greatly as well. In actual comparison, at some settings the Canon 16-35mm f/2.8L II or Canon 17-40mm f/4L were clearly better than this 20-35mm, and in just as many cases, this 20-35 L was clearly superior and one of the others looked like mush!

The 20-35 is sharpest at the longer settings. It will get softer on the sides at 20mm, but so do the other Canon ultrawide zooms.

Like many ultrawides, the field seems curved at times. It seems to curve the subject plane of best focus closer to you at the sides at the 20mm end. This means tests on flat subjects or at infinity won't look that great, but in real-world indoor, nature and landscape photography, the results will be even better.

In actual practice, none of Canon's ultrawide zooms is all that great. Nikon's 16-35mm VR and 14-24mm lenses are in a completely different class, which is why some people use adapters to use Nikon wide lenses on their Canon cameras!



Spherochromatism     performance      top

I see no spherochromatism, and didn't expect to see any.

Spherochromatism, misnamed "color bokeh" by laymen, is when out-of-focus highlights take on color fringes. The Canon 20-35/2.8L 's out-of-focus highlights have no color fringes.

Spherochromatism is a completely different aberration from lateral color fringes.



Sunstars     performance      top

With its traditional 6-bladed diaphragm, this Canon 20-35mm f/2.8 L makes muted 6-pointed sunstars on brilliant points of light.



Compared       top

Intro   Specs   Performance   Compared   Usage   Recommendations

Canon 20-35mm f/2.8

Canon 20-35 USM, 20-35mm f/2.8 L, 17-40mm f/4 L and 16-35/2.8II. enlarge.



Canon 20-35mm f/2.8

Canon 20-35 USM, 20-35 L, 17-35mm, 17-40mm and 16-35mm L II. enlarge.

See Canon Ultrawide Zooms Compared.



Usage       top

Intro   Specs   Performance   Compared   Usage   Recommendations



AF - MF Switch

Leave this in AF.

Set it to MF to deactivate autofocus, or to focus by hand.

The focus ring isn't connected to anything in the AF position.



Focus Point

I haven't had any problem with this lens, but with my other Canon ultrawide zooms I usually get the most accurate focus with the center AF area.



Recommendations       top

Intro   Specs   Performance   Compared   Usage   Recommendations

I can't overemphasize how great it feels to have a lens with an all-metal barrel. Unlike Canon's newer lenses, this 20-35 L feels tough and precise.

The Canon 20-35mm f/2.8L is the lens that helped Canon win the professional market away from Nikon.

It has the same optical quality as the other Canon ultrawide zooms, so if you want to save money and get a smaller, tougher lens with less distortion, go for it!

If you get one of these 20-35mm lenses, consider the matching Canon EF 80-200mm f/2.8 L, which is built and works just as well, and shares the same marvelous all-metal construction and 72mm filter thread.

If you've found the time I've spent sharing this professional review helpful, this free website's biggest source of support is when you use these links, especially this link directly to them at eBay (see How to Win at eBay) when you get anything, regardless of the country in which you live. It helps me keep reviewing these oldies when you get yours through these links, thanks! Ken.

Thanks!

Ken.



More Information:

Canon's Museum. (incorrectly claims 8 bladed diaphragm and f/32 minimum.)



Help me help you         top

I support my growing family through this website, as crazy as it might seem.

The biggest help is when you use any of these links to Adorama, Amazon, eBay, Ritz, Calumet, J&R and ScanCafe when you get anything, regardless of the country in which you live. It costs you nothing, and is this site's, and thus my family's, biggest source of support. These places have the best prices and service, which is why I've used them since before this website existed. I recommend them all personally.

If you find this page as helpful as a book you might have had to buy or a workshop you may have had to take, feel free to help me continue helping everyone.

If you've gotten your gear through one of my links or helped otherwise, you're family. It's great people like you who allow me to keep adding to this site full-time. Thanks!

If you haven't helped yet, please do, and consider helping me with a gift of $5.00.

As this page is copyrighted and formally registered, it is unlawful to make copies, especially in the form of printouts for personal use. If you wish to make a printout for personal use, you are granted one-time permission only if you PayPal me $5.00 per printout or part thereof. Thank you!



Thanks for reading!





Mr. & Mrs. Ken Rockwell, Ryan and Katie.



Home  Donate  New  Search  Gallery  Reviews  How-To  Books  Links  Workshops  About  Contact
