Minolta 1800 AF Flash
MAXXUM Autofocus system (1985-)
© 2013 KenRockwell.com. All rights reserved.

Please help KenRockwell..com

Minolta MAXXUM 1800 AF FLash

Minolta MAXXUM 1800 AF Flash (4-AAA cells or 223 lithium battery, GN 18 meters, 59 feet at ISO 100, for Minolta MAXXUM cameras, 6.305 oz./178.8g with 4 alkaline AAA cells, about $15 used).



My biggest source of support is when you use any of these links, especially this link directly to them at eBay (see How to Win at eBay), when you get anything, regardless of the country in which you live. Please always use these links when getting any of your gear so I can continue to share what I know. It helps me keep adding to this free website when you get yours through these links — but I receive nothing for my efforts if you buy elsewhere. Thanks for your support! Ken.



Minolta MAXXUM 1800 AF FLash

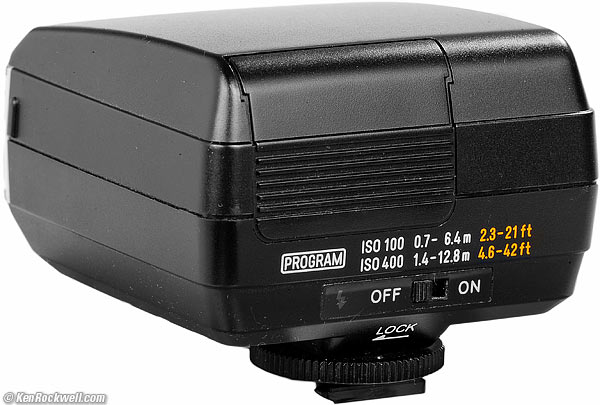

Rear, Minolta MAXXUM 1800 AF Flash. enlarge.

May 2013    Minolta   Sony   Pentax   Nikon   Canon   All Reviews   Better Pictures



Introduction         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

Adorama pays top dollar for your used gear.

B&H Photo - Video - Pro Audio

I use these stores. I can't vouch for ads below.


The Minolta 1800 AF flash was announced in 1985 for use with the new MAXXUM 7000.

The 1800 AF is a high performance small flash. It does not bounce, Its performance is high, with a built-in infra-red AF illuminator, a great standby circuit so it can be left on all the time and modern thyristor circuitry for super-fast recycle times, however the early MAXXUM cameras weren't very smart in terms of exposure flexibility and sync speeds.

The 1800 AF may work on the newest Sony Alpha cameras, which descend from MAXXUM.

The 1800 AF uses a standard hot shoe. Minolta and then Sony used a screwy new shoe from about 1988-2012, and Minolta made adapters so that this flash will work on the slot-style hot shoe.

The 1800 AF has a 1 minute standby time-out. It goes to sleep all by itself after a minute, and wakes up with your camera. Therefore it's AOK to leave it turned on all the time.

4000AF
15 min stby



Specifications         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More



Power Output

Rated guide number 59 feet (18 meters) at ISO 100.

(Rated guide number 46 feet (14 meters) at ISO 100 with wide adapter.)



Program Mode Distance Range

Program mode forces f/2.8:

2.3 to 21 feet at ISO 100.

(2.3 feet to 16 feet with wide adapter at ISO 100.)



Exposure Modes

TTL only, as controlled by camera.



Lens Coverage

Rated to cover a 35mm lens, to 28mm with wide adapter.



AF Illuminator

3.3 to 15 feet range.

1 to 4.5 meters range.



Power Source

4-AAA or one 223 lithium battery.

Rated 150 to 1,000 shots on alkaline.

Rated 380-2,000 shots on 223 lithium battery.



Recycling

Rated 3.6 to 0.4 seconds on alkaline.

Rated 2.4 to 0.3 seconds on 223 lithium battery.



Standby

Automatically goes to sleep after a minute.

Wakes up as soon as a MAXXUM camera wakes up.



Size

Rated 2-3/4 x 2-3/16 x 2-15/16 inches.

Rated 70 x 56 x 74 mm.



Weight

6.305 oz. (178.8g) measured with 4 alkaline AAA cells.

Rated 4.75 oz. (135g) empty.



Quality

Made in Japan.



Price, USA

May 2013: about $15 used.



Recommendations         top

Intro   Specs   Performance   Compared   Usage   Recommendations   More

The 1800 AF is the perfect take-everywhere flash for use with MAXXUM cameras. It's small, light, has enough power and even offers an AF illuminator in its tiny package. it recycles quickly and is small enough to leave on the camera all the time.
