Canon 15-85mm IS
EF-S USM
(2009-today)

© 2011 KenRockwell.com. All rights reserved.

Intro   Specs   Performance   Usage   Recommendations

Please help KenRockwell..com

Canon 15-85mm f/3.5-5.6 IS

Canon EF 15-85mm f/3.5-5.6 IS USM (72mm filters, 1.15 feet/0.35m close-focus, 20.2 oz./571g, about $750.) enlarge. This free website's biggest source of support is when you use these links, especially these directly to it at Adorama or at Amazon, when you get anything, regardless of the country in which you live. Thanks! Ken.



October 2011    More Canon Reviews    Canon Lenses    All Reviews



Introduction       top

Intro   Specs   Performance   Usage   Recommendations

Adorama pays top dollar for your used gear.

B&H Photo - Video - Pro Audio

I use these stores. I can't vouch for ads below.

The Canon EF 15-85mm f/3.5-5.6 IS USM is a very attractive do-everything lens for Canon's 1.6x ("APS-C") cameras (it won't work on full-frame or 1.3x cameras).

It covers the same range as a 24-135mm lens would cover on a full-frame camera, it has Image Stabilization (IS) for tripod-less shooting in any light, you may grab the focus ring at any time for instant manual-focus override, and it focuses super-close, eliminating the need for a separate macro lens. If you can't shoot it with this lens, it can't be shot.

Except for the glass and lens mount, it's mostly made of plastic and it handles and performs very well.



Compatibility

This lens works only on 1.6x Canon cameras, except the very earliest 10D and earlier D60 and D30 (details).

It will not even attach to 35mm, full-frame or 1.3x cameras.

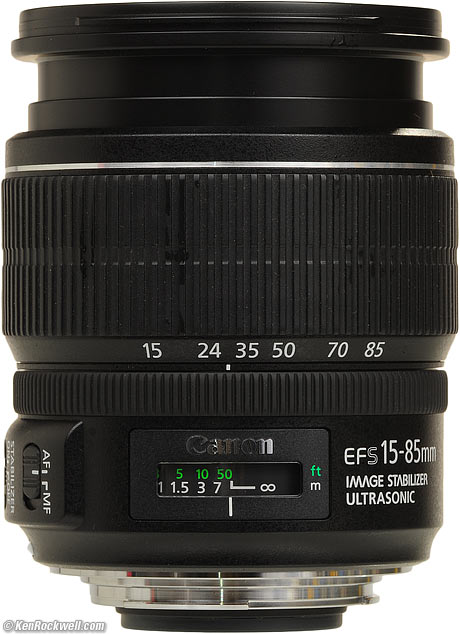

Canon 15-85mm f/3.5-5.6 IS

Canon 15-85/3.5-5.6 IS USM. enlarge.



Specifications         top

Intro   Specs   Performance   Usage   Recommendations



Name

Canon calls this the CANON EF-S 15-85mm f/3.5-5.6 IS USM.

EF means "electronic focus," meaning that there is an autofocus motor in the lens itself. All Canon lenses since 1987 have been EF.

-S means "small" sensor; it only works on 1.6x Canon cameras.

IS is Image Stabilization, which makes tripod obsolete most of the time.

USM means Ultra-Sonic Motor. This means autofocus is almost silent, and that you can grab the big focus ring for instant manual focus override at any time.



Optics       top

17 elements in 12 groups.

1 UD glass and 3 aspherical elements.

Internal focus; nothing moves externally as focused.

Pumper zoom: front half of the lens pumps in and out; longest at longer focal lengths.



Focal Length

15-85mm.



Used on a 1.6x Canon camera, it will see angles-of-view similar to what a 24-135mm lens would see on a 35mm or full-frame camera.



Angle of View (on 1.6x Canon cameras)

84.5º ~ 18.5º diagonal.

53.5º ~ 10.5 º vertical.

74.2º ~ 15.5º   horizontal.



Close Focus       top

1.15 feet (0.35m), specified, from the image plane.



Maximum Reproduction Ratio       top

1:4.8.



Image Stabilization       top

Rated for four stops (16 times) reduction in camera-shake induced image blur.



Teleconverters

The Canon EF 1.4x II and Canon EF 2x II teleconverters DO NOT work with this lens.



Extension Tubes

Use the Canon EF12 II to get close-ups to almost one-half life-size at the image sensor.

The Canon EF25 II is not compatible.



Close-up Lenses

Use the Canon 500D to get close-ups to almost 3s/10 life-size at the image sensor.



Diaphragm       top

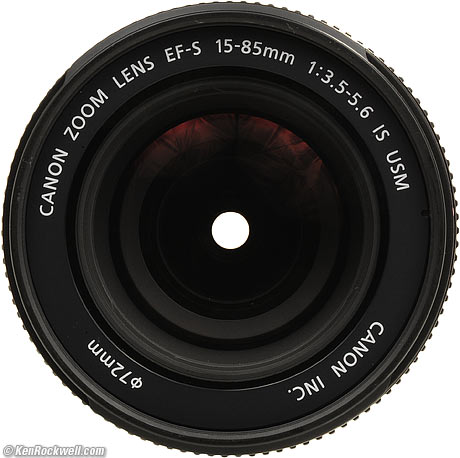

Canon 15-85mm f/3.5-5.6 IS

Canon 15-85/3.5-5.6 IS USM at 24mm at f/4 (EF diaphragm not visible). enlarge.

7 blades.

Stops down to f/22-38 (only f/36 in third stops).



Hard Infinity Focus Stop?        top

No.

You have to let the AF system focus for you at infinity.



Focus Scale       top

Yes.

The ring turns from infinity to the closest focus distance in about 91.º



Depth-of-Field Scale       top

No.



Infra-Red Focus Indices       top

No.



Filter Thread       top

72mm.

Plastic.

Does not rotate, but moves in and out with zooming.



Size       top

Canon specifies 3.2" (81.6mm) diameter by 3.4 " (87.5mm) long.

It gets longer as zoomed longer.



Weight       top

20.155 oz. (571.4g), measured.

Canon specifies 20.3 oz. (575g).



Hood       top

$37 plastic bayonet EW-78E, not included.



Case       top

$25 LP1116 pouch, not included.



Caps       top

Standard 72mm ET-72U front, included.

Standard EOS cap rear.



Introduced       top

01 September 2009.



Quality       top

Made in Taiwan.

Canon carefully hides this by molding it in black-on-black into the rear shield, which is invisible with the lens capped or mounted.



Price, USA        top

2011 October: $750.



Canon 15-85mm f/3.5-5.6 IS

Box, Canon 15-85/3.5-5.6.



Performance       top

Intro   Specs   Performance   Usage   Recommendations

Overall    Autofocus    Bokeh   Breathing   Color   Distortion

Ergonomics   Falloff    Filters     Lateral Color Fringes   Maximum Apertures

Mechanics   Sharpness   Spherochromatism   Sunstars



Overall     performance      top

The Canon 15-85mm f/3.5-5.6 IS is extremely handy; there isn't anything it can't do. If 85mm on 1.6x cameras isn't close enough, walk closer.



Autofocus     performance      top

Autofocus is fast and silent.

No problems here, as usual for Canon.



Auto/Manual Switching

Just grab the focus ring at any time for instant manual-focus override.

Only move the AF-MF switch to MF if you want to disable the camera from auto focusing.



AF Accuracy and Consistency

I saw no autofocus error.



Manual Focus

Manual focus is easy; just grab the ring at any time.

It takes only 91 º to go from end-to-end of the focus scale.



Bokeh     performance      top

Bokeh, the quality of out-of-focus areas as opposed to the degree of defocus, is good.

Backgrounds never distract.

If you want to throw the background out of focus, more important than f/stop is to use the 85mm end of the zoom range and step closer.



Focus Breathing     performance      top

Focus breathing (the image changing size as focused) is mostly of interest to cinematographers who don't want the image changing size ("breathing") as the lens is focused among different subjects.

The image from the Canon 15-85mm f/3.5-5.6 always gets smaller as focused more closely, which is backwards from most traditional fixed lenses.



Color Rendition     performance      top

The color balance of this 15-85mm f/3.5-5.6 IS seems to match my other Canon EF lenses.



Distortion     performance      top

The Canon 15-85mm f/3.5-5.6 USM has the usual distortion we expect from wide-range general purpose zooms.

It's got moderately strong high-order barrel distortion at 15mm, it's neutral but wavy at 17mm, and has minor pincushion distortion in the rest of the range, except at 24mm, where the pincushion distortion is strong.

If distortion matters, shoot around 17mm or at 85mm.

For critical use, use these values in Photoshop's Lens Distortion tool to remove it:

at 10' (3m)
15mm
+3.0**
17mm
0.0**
19mm
-1.5*
24mm
-3.0*
35mm
-2.0
50mm
-1.5
85mm
-1.0

© 2011 KenRockwell.com. All rights reserved.

* Some waviness remains after correction.

** Lots of waviness remains after correction.



Ergonomics     performance      top

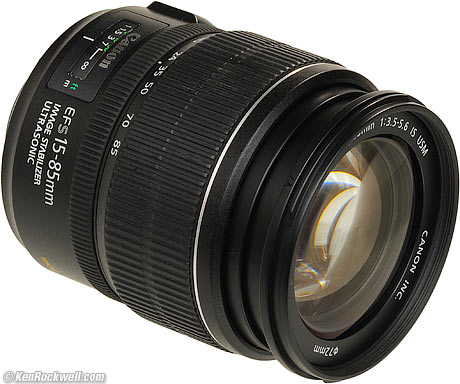

Canon 15-85mm f/3.5-5.6 IS

Canon 15-85/3.5-5.6 IS USM. enlarge.

This is an easy to use lens. My biggest whine is that it's bigger and heavier than smaller zooms, and more of a pain to carry around all day around my neck than the nice little 18-55mm lenses that do much of the same thing.

Zoom and focus are plastic, and feel that way. They require a moderately firm touch to move, but they don't creep, either.

The zoom range is reasonably well-cammed, although the wide end is a bit more congested than the tele end. The zoom ring doesn't turn with equal resistance throughout its range; it requires more force around the 24mm range.

The AF-MF slider on the side is right where it needs to be under my thumb.



Falloff (darkened corners)     performance      top

Falloff isn't visible.

I've greatly exaggerated this by shooting a flat gray target and presenting it against a gray background.



Canon 15-85mm f/3.5-5.6 IS falloff

No peripheral illumination control


f/5.6
f/8
15mm Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff
24mm Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff
50mm Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff
85mm
Maximum aperture
is f/5.6 -->
Canon 15-85mm f/3.5-5.6 falloff Canon 15-85mm f/3.5-5.6 falloff

© 2011 KenRockwell.com. All rights reserved.





Filters, Use with     performance      top

Filters are easy. I can't get vignetting even with a thick polarizer.

There's no need for expensive "thin" filters.



Lateral Color Fringes     performance      top

There are lateral color fringes at the wide end.

At 15mm, you'll see probably some cyan-red fringes.

At 24mm, there are only some very minor cyan-red fringes.

There are no fringes around 35-50mm.

At 70mm, there are only some very minor magenta-green fringes.

At 85mm, there again are some magenta-green fringes.



Maximum Apertures     performance      top

Zoom Setting
Maximum Aperture
17mm
f/3.5
24mm
f/4
35mm
f/4.5
50mm
f/5
70mm
f/5.6
85mm
f/5.6

© 2011 KenRockwell.com



Mechanics     performance      top

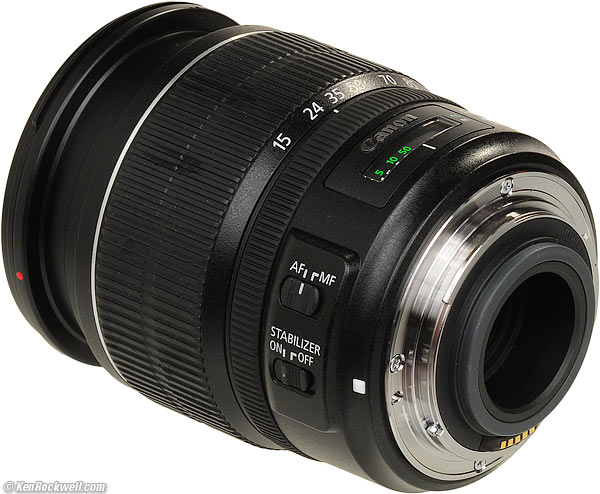

Canon 15-85mm f/3.5-5.6

Rear, Canon 15-85 f/3.5-5.6. enlarge.

The Canon 15-85mm f/3.5-5.6 IS is mostly plastic, except for the mount and the glass itself.



Filter Threads

Plastic.



Hood Mount

Plastic.



Identity Ring

Painted on barrel.



Fore Barrel

Plastic.



Focus Ring

Rubbery plastic.



Mid-barrel

Plastic.



Internals

Feel like plastic.



Zoom Ring

Plastic, rubber-covered.



Rear barrel

Plastic.



Moisture seal at mount

No.



Mount

Chromed metal.



Markings

Paint.



Serial Number

Laser-engraved into bottom of lens barrel near mount.



Date Code

None found.



Noises When Shaken

Moderately loud rattling and clunking.



Made in

Taiwan.



Sharpness     performance      top

Lens sharpness doesn't matter much, but it sure distracts amateurs who confuse lens sharpness with picture sharpness.

The 15-85mm is sharp enough. It's not as sharp as a 70-200/2.8L IS II, but no other zoom is, either.

Specifically, it's pretty sharp at all settings and doesn't vary much with aperture or zoom setting.

Particularly remarkable is that there is no setting at which it gets soft. Most moderately zooms have some focal-length range or part of the image that gets soft at large apertures, while the Canon 15-85mm has no soft spots,especially at the 85mm end, where it's still sharp corner-to-corner even wide open.

It's never that extraordinarily sharp, but more important is that it never gets particularly soft at any setting.

Here are Canon's claimed MTF curves:

Canon 15-85mm f/3.5-5.6 MTF     Canon 15-85mm f/3.5-5.6 MTF

Canon's MTF Curves.



Spherochromatism     performance      top

I see no spherochromatism

Spherochromatism, misnamed "color bokeh" by laymen, is when out-of-focus highlights take on color fringes. The Canon 15-85/3.5-5.6's out-of-focus highlights have no color fringes.

Spherochromatism is a completely different aberration from lateral color fringes.



Sunstars     performance      top

Sunstar, Encinitas Santa Fe medical center  Canon 15-85mm IS

Sunstar, Canon 15-85mm IS at f/10 at 42mm (complete image).

With its 7-bladed diaphragm, this Canon 15-85mm f/3.5-5.6 IS makes marvelous 14-pointed sunstars on brilliant points of light. The blades are somewhat curved and therefore the sunstars have softer spikes.

This is much better than most Canon lenses, even much more expensive lenses like the 70-200/2.8L IS II, which have 8-blades and only make boring 8-pointed sunstars.



Usage       top

Intro   Specs   Performance   Usage   Recommendations



AF - MF Switch

Leave this in AF. Just grab the focus ring at any time for instant manual-focus override.

Only set it to MF if you want it to be locked into manual focus.



Image Stabilizer

Leave this on. It eliminates camera shake for sharper pictures. It replaces a tripod.

The stabilizer works even when using a monopod.

The only time to turn it off is if you're on a very sturdy tripod.



Recommendations       top

Intro   Specs   Performance   Usage   Recommendations

The Canon 15-85mm f/3.5-5.6 IS is a great do-everything lens for Canon's 1.6x ("APS-C") cameras. I prefer it over the 18-135mm because this 15-85mm is built tougher, has instant manual-focus override without needing to move a switch, covers a more useful focal length range and makes superior 14-pointed sunstars.

If you've found the time I've spent sharing this professional review helpful, this free website's biggest source of support is when you use these links, especially these directly to it at Adorama or at Amazon, when you get anything, regardless of the country in which you live.

Thanks!

Ken.



More Information:

Canon's 15-85/3.5-5.6 IS Instruction Manual.

Canon, USA's data.
